Left Front Impact Sensor Connector
Left Front Impact Sensor Connector

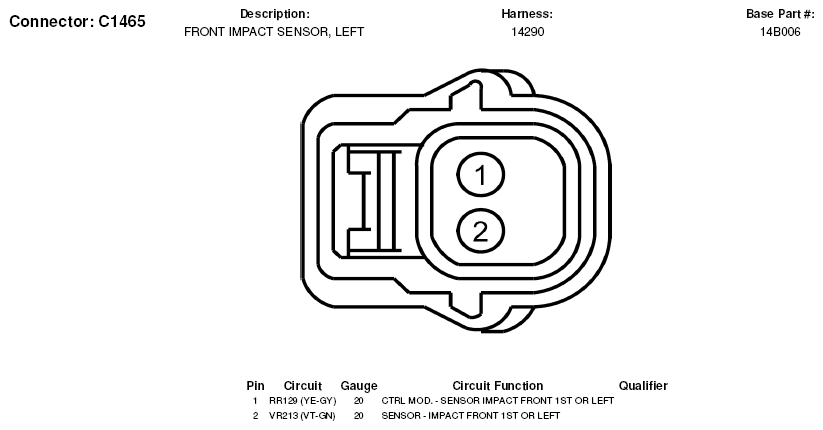

Fig 1: Left Front Impact Sensor Connector End View (C1465)
