Left Vanity Mirror Lamp Connector
Left Vanity Mirror Lamp Connector

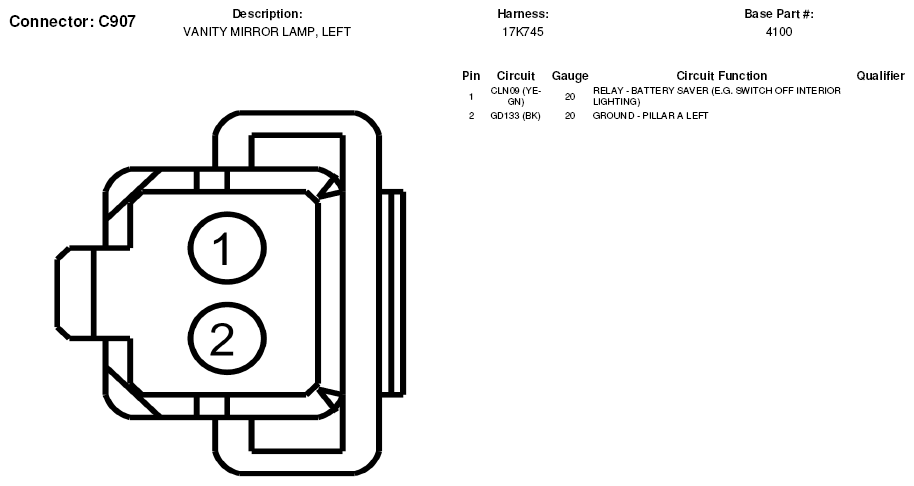

Fig 1: Left Vanity Mirror Lamp Connector End View (C907)
