Passenger 2 Side Impact Sensor Connector

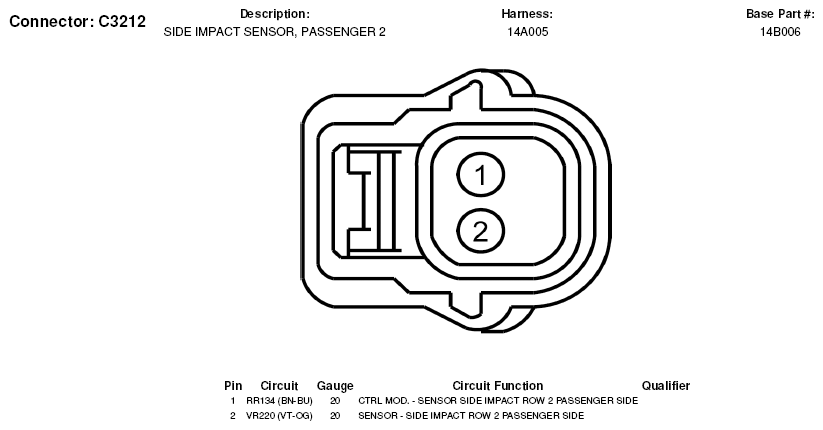

Fig 1: Passenger 2 Side Impact Sensor Connector End View (C3212)
G05603509
