Smart Junction Box Connector

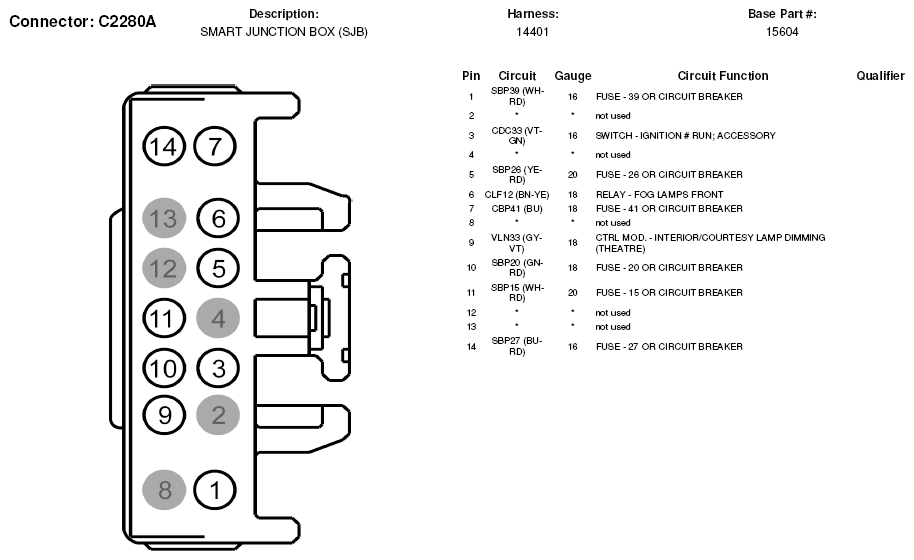

Fig 1: Smart Junction Box Connector End View (C2280A)

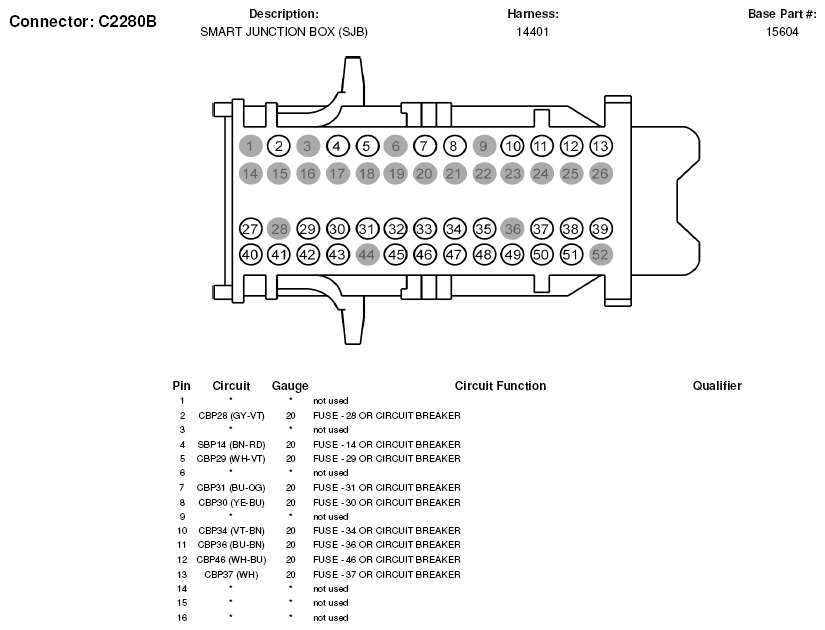

Fig 2: Smart Junction Box Connector End View (C2280B) (1 Of 2)

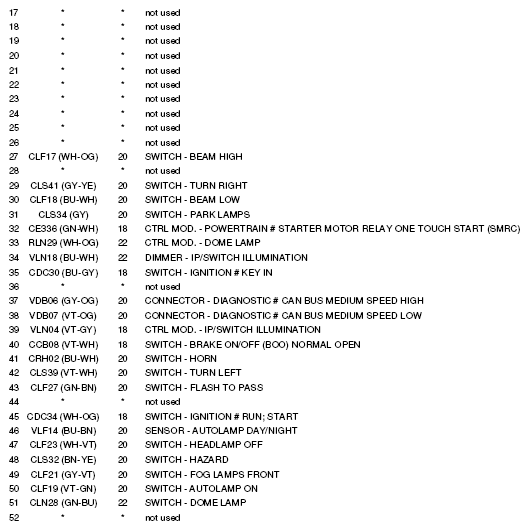

Fig 3: Smart Junction Box Connector End View (C2280B) (2 Of 2)

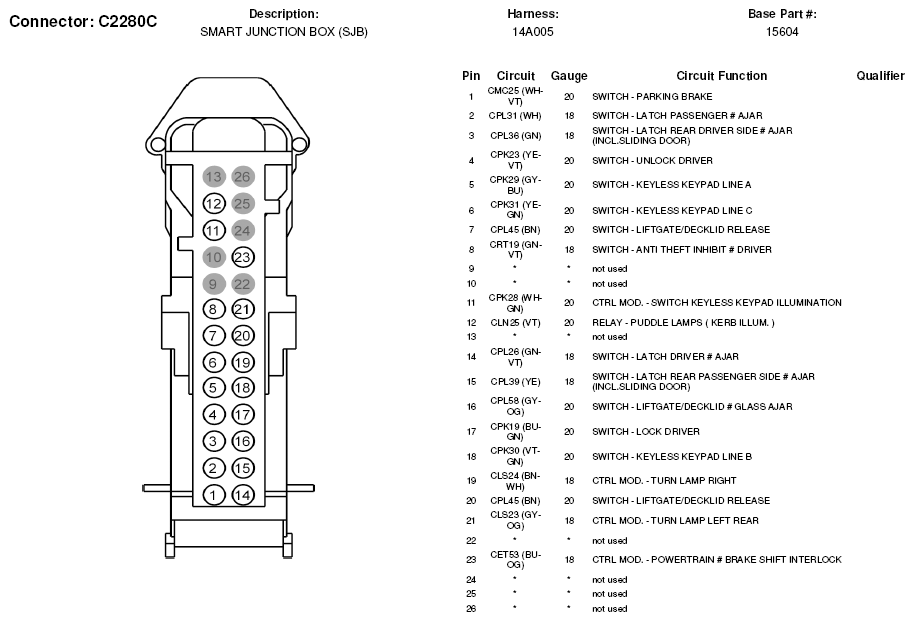

Fig 4: Smart Junction Box Connector End View (C2280C)

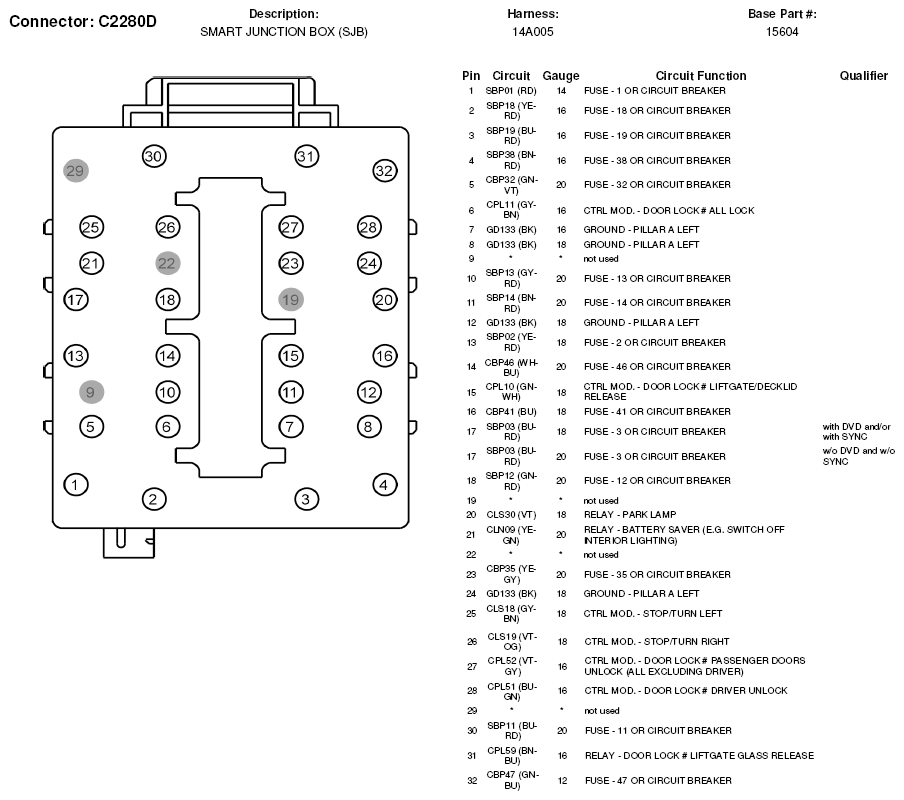

Fig 5: Smart Junction Box Connector End View (C2280D)

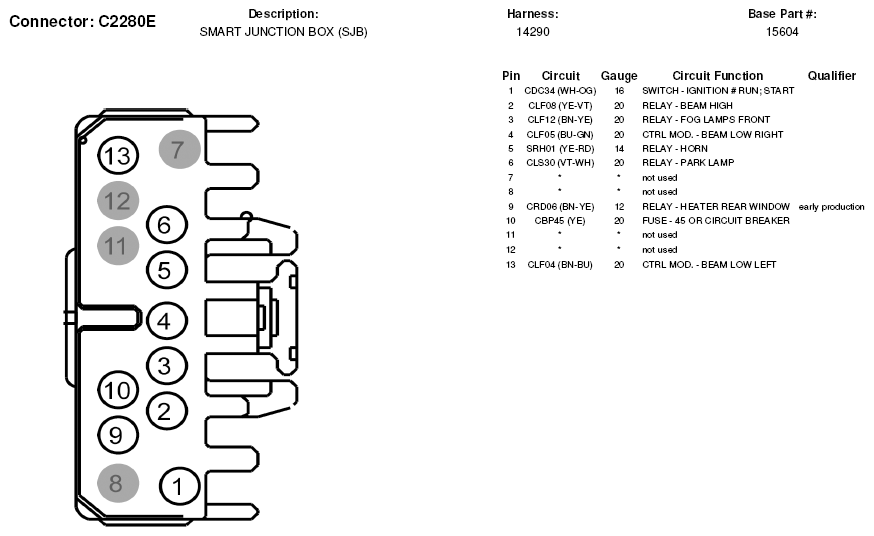

Fig 6: Smart Junction Box Connector End View (C2280E)

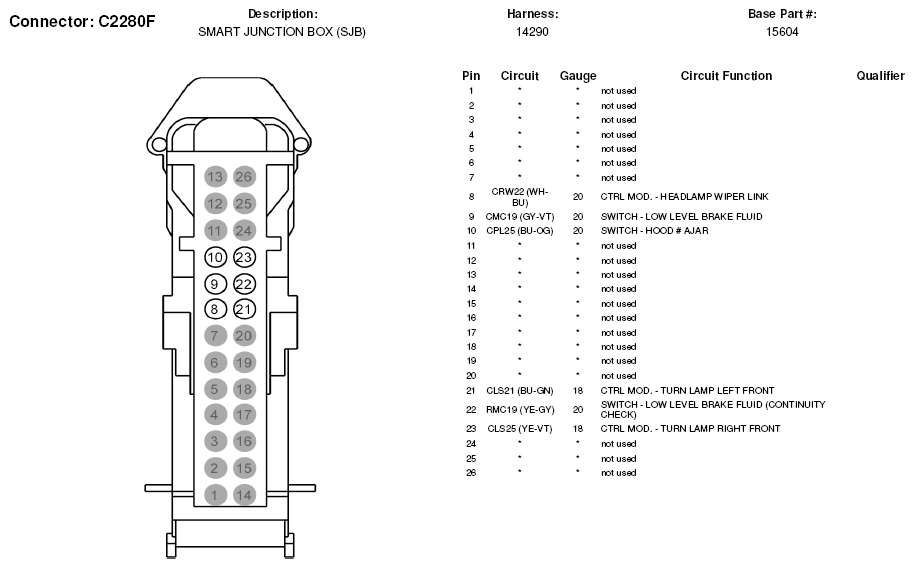

Fig 7: Smart Junction Box Connector End View (C2280F)

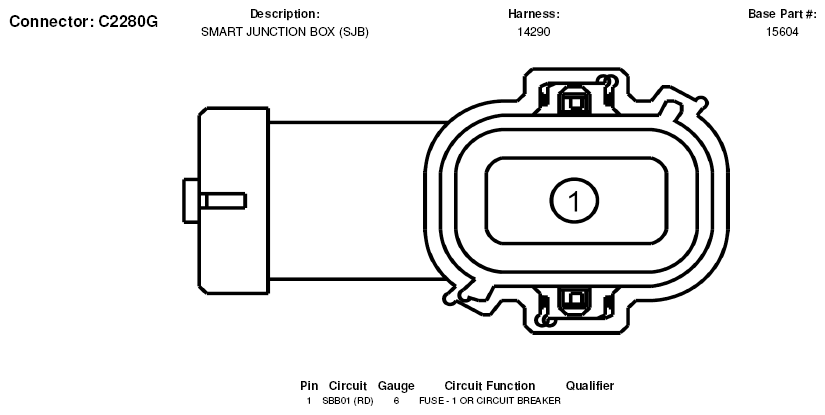

Fig 8: Smart Junction Box Connector End View (C2280G)
