Four Wheel Drive Control Module Connector End View - C281A

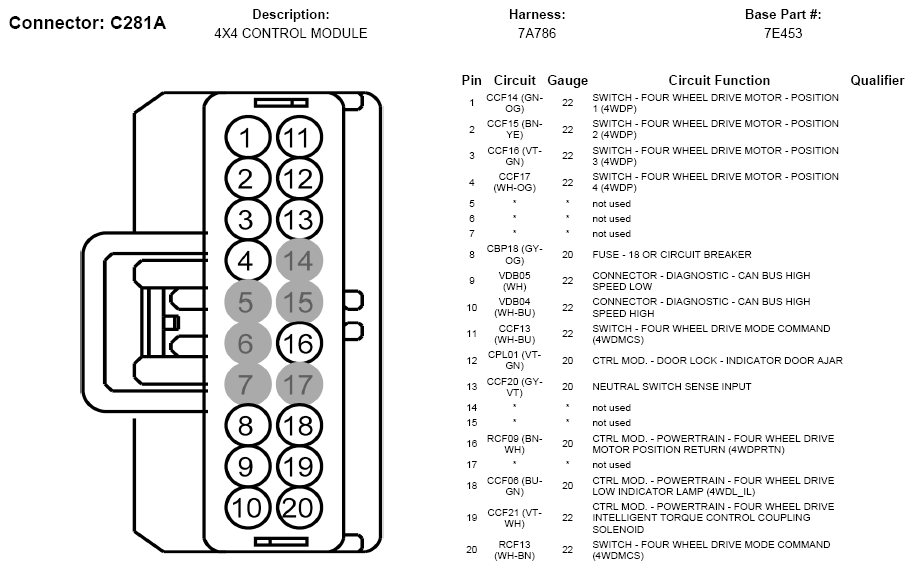

Fig 1: Four Wheel Drive Control Module Connector End View (C281A)
G05787774Courtesy of FORD MOTOR CO.
