Four Wheel Drive Control Module Connector End View - C281B

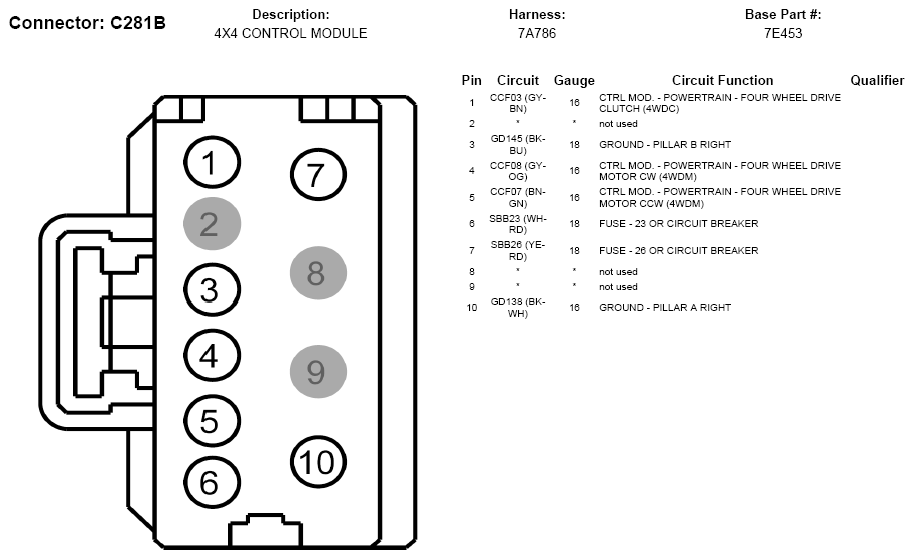

Fig 1: Four Wheel Drive Control Module Connector End View (C281B)
G05787775Courtesy of FORD MOTOR CO.
