Power Running Board Module Connector End View - C4322A

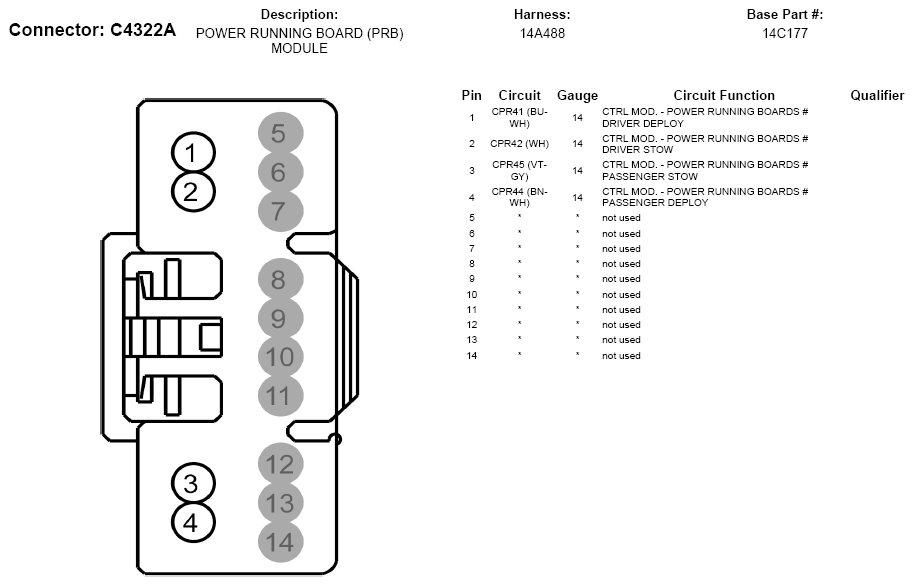

Fig 1: Power Running Board Module Connector End View (C4322A)
G05788050Courtesy of FORD MOTOR CO.
