Power Running Board Module Connector
›
Power Running Board Module Connector End View - C4322B
Power Running Board Module Connector End View - C4322B

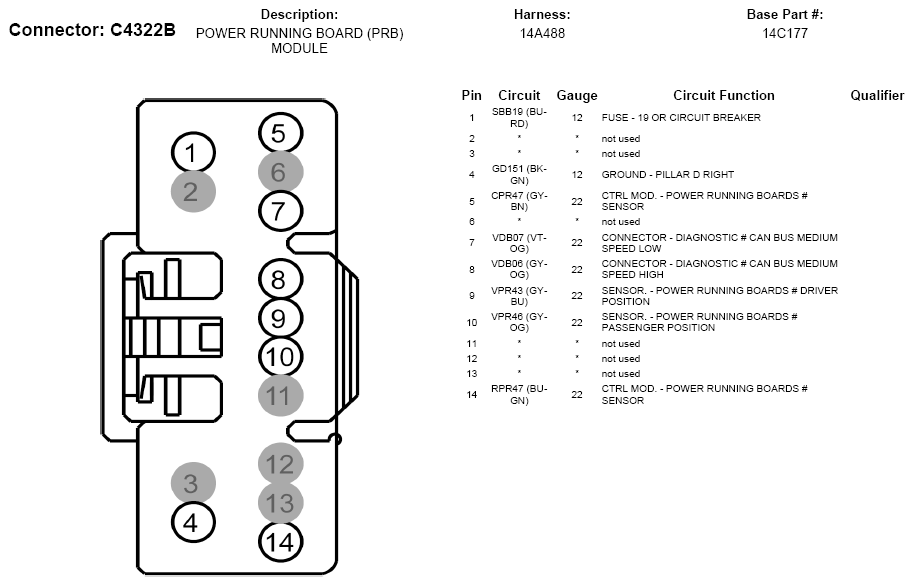

Fig 1: Power Running Board Module Connector End View (C4322B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
