Powertrain Control Module Connector End View - C175T

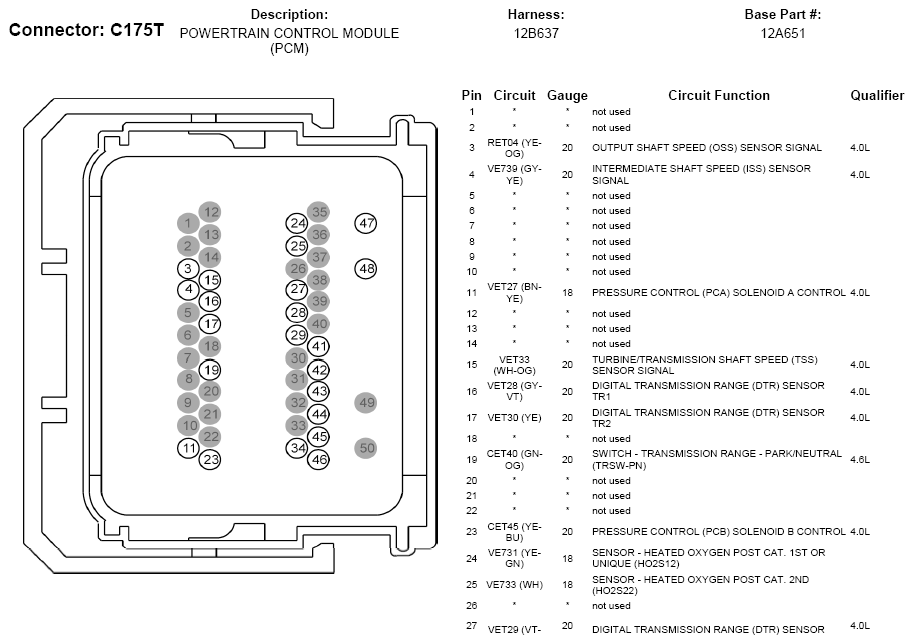

Fig 1: Powertrain Control Module Connector End View (C175T) (1 Of 2)
G05787723Courtesy of FORD MOTOR CO.
Fig 2: Powertrain Control Module Connector End View (C175T) (2 Of 2)
G05787724Courtesy of FORD MOTOR CO.
