Safety Belt Retractor - Third Row
›
Notes
Safety Belt Retractor - Third Row: Notes

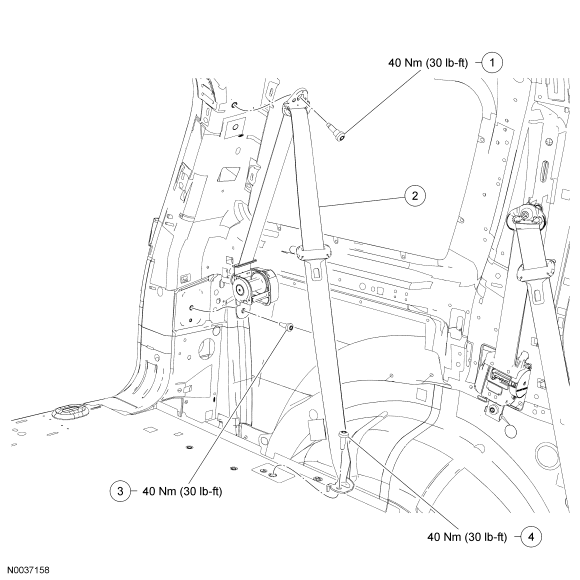

Fig 1: Exploded View Of Safety Belt Retractor With Torque Specifications - Third Row
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
W704703
D-ring bolt
2
611B50 RH/ 611B51 LH
Safety belt retractor
3
W700883
Safety belt retractor bolt (part of 611B50 RH/ 611B51 LH)
4
W700883
Safety belt retractor anchor bolt (part of 611B50 RH/ 611B51 LH)
