Accelerator Pedal Position Sensor Connector - C2040
Accelerator Pedal Position Sensor Connector - C2040

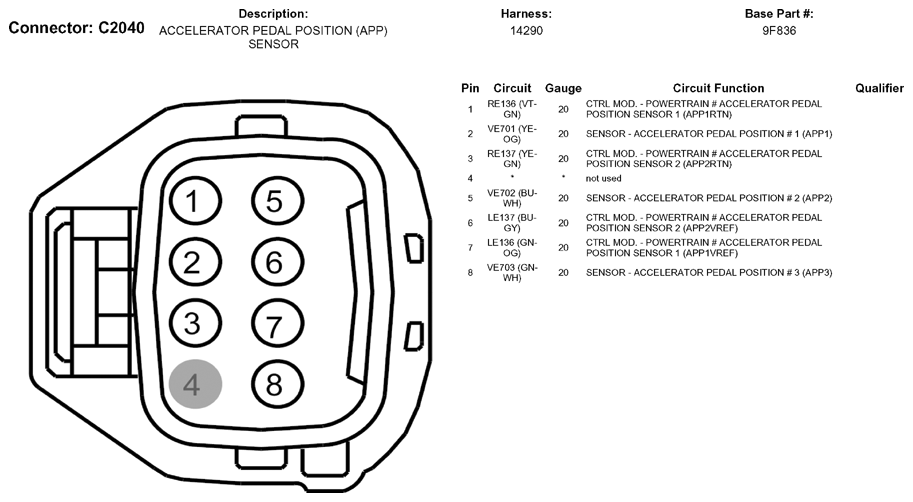

Fig 1: Accelerator Pedal Position Sensor Connector End View (C2040)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
