All Wheel Drive Module Connector - C281

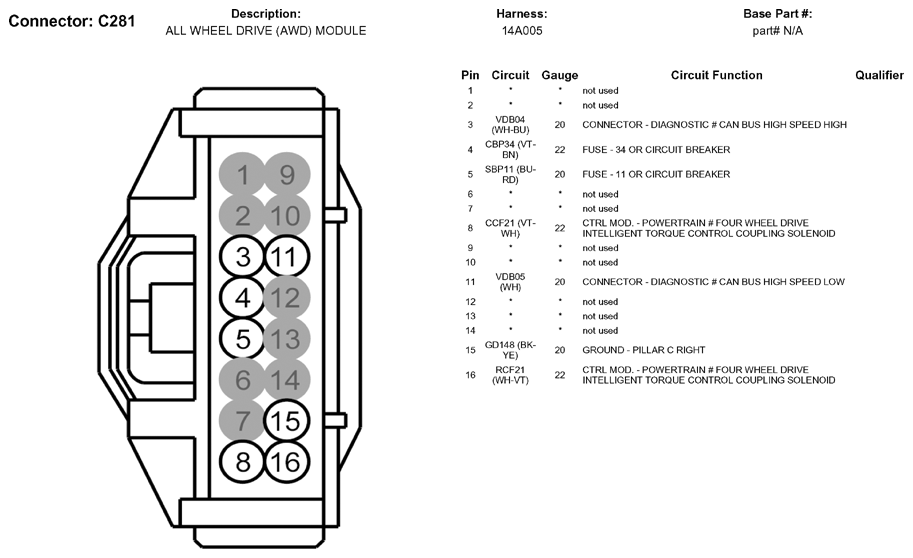

Fig 1: All Wheel Drive Module Connector End View (C281)
G05789972Courtesy of FORD MOTOR CO.
