Autolamp Sensor / Sunload Sensor Connector - C286
Autolamp Sensor / Sunload Sensor Connector - C286

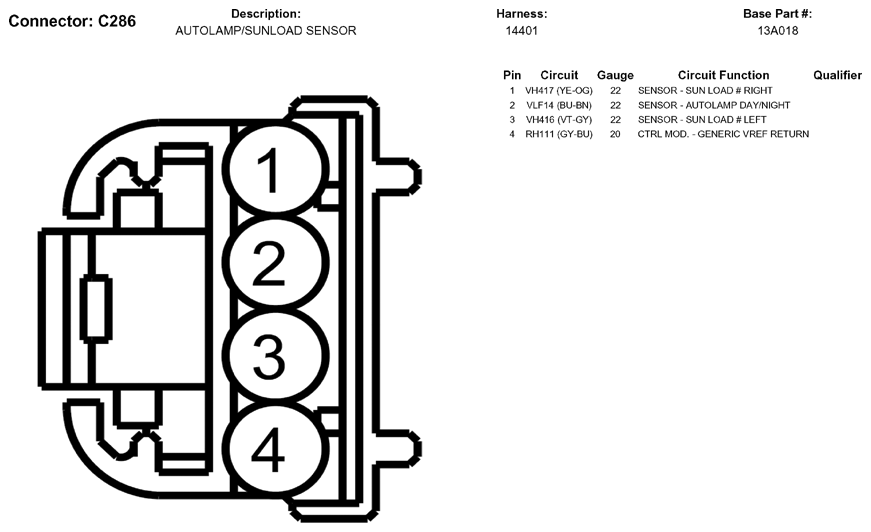

Fig 1: Autolamp Sensor / Sunload Sensor Connector End View (C286)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
