Blower Motor Speed Control Connector - C271

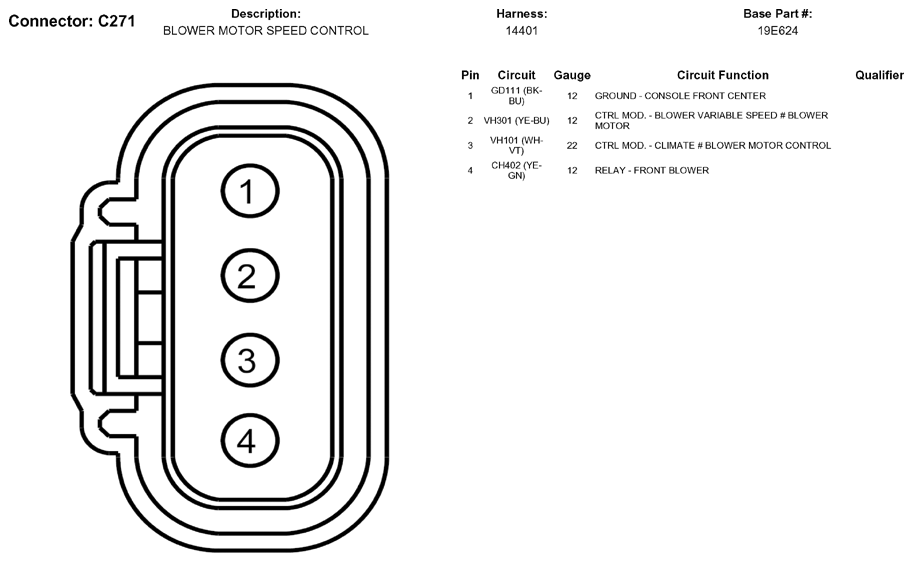

Fig 1: Blower Motor Speed Control Connector End View (C271)
G05789969Courtesy of FORD MOTOR CO.
