Driver 1 Side Impact Sensor Connector - C571
Driver 1 Side Impact Sensor Connector - C571

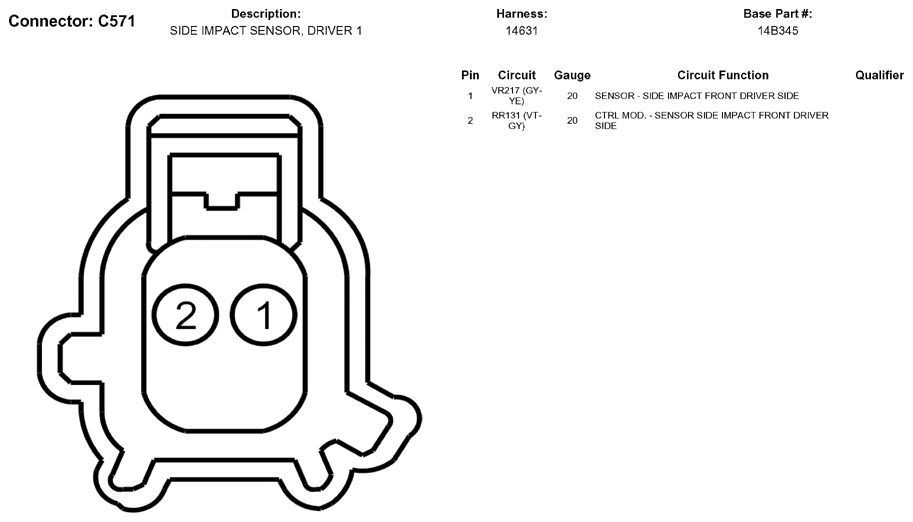

Fig 1: Driver 1 Side Impact Sensor Connector End View (C571)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
