Driver Side Air Bag Module Connector - C3226

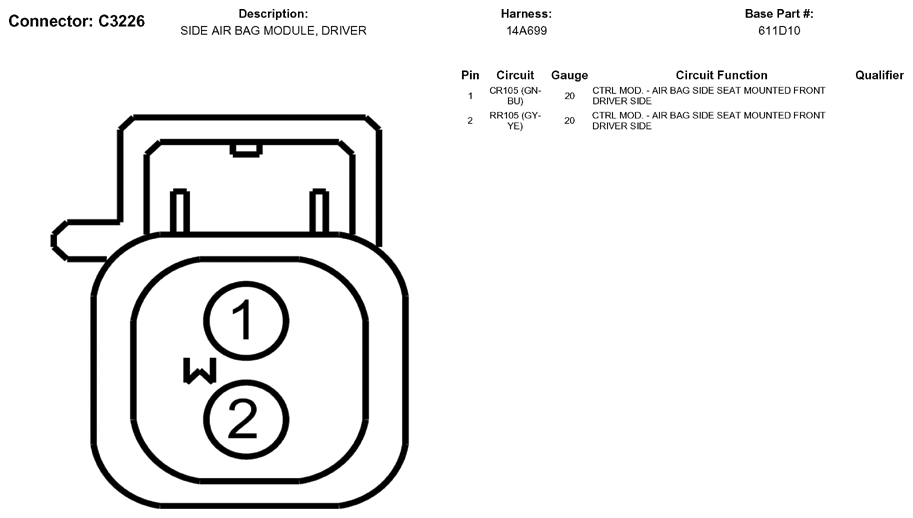

Fig 1: Driver Side Air Bag Module Connector End View (C3226)
G05790169Courtesy of FORD MOTOR CO.
