Driver Side Door Lock Switch Connector - C541
Driver Side Door Lock Switch Connector - C541

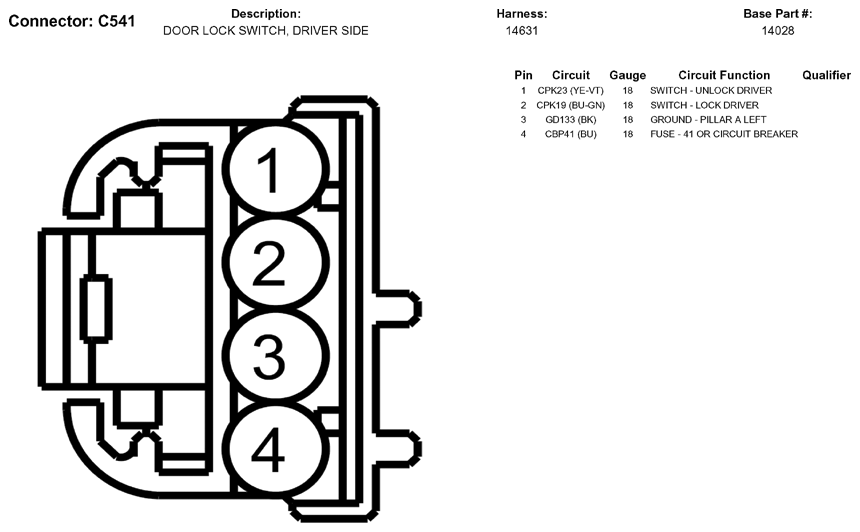

Fig 1: Driver Side Door Lock Switch Connector End View (C541)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
