Driver Side Front Seat Control Switch Connector
›
Driver Side Front Seat Control Switch Connector End View - C360
Driver Side Front Seat Control Switch Connector End View - C360

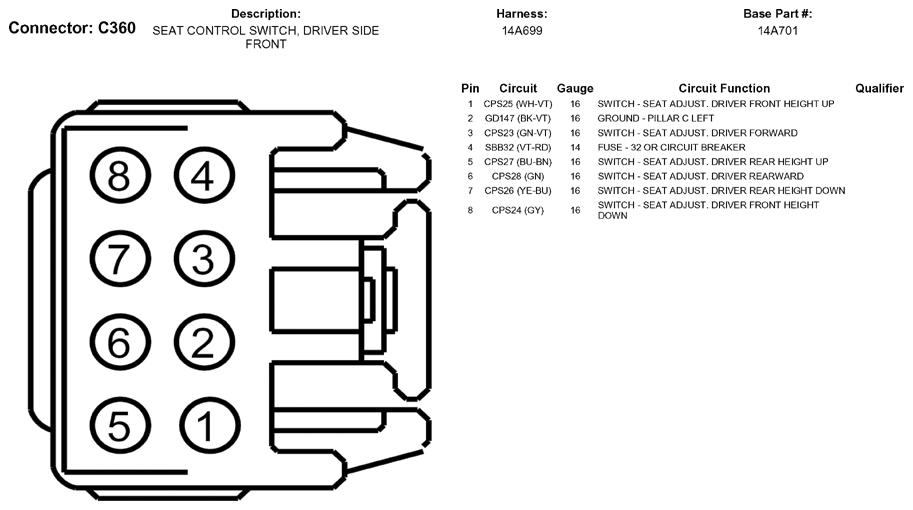

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
