Home › Mercury › 2009 › Sable Base, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Front Heated Seat Module Connector - C3304

Front Heated Seat Module Connector - C3304

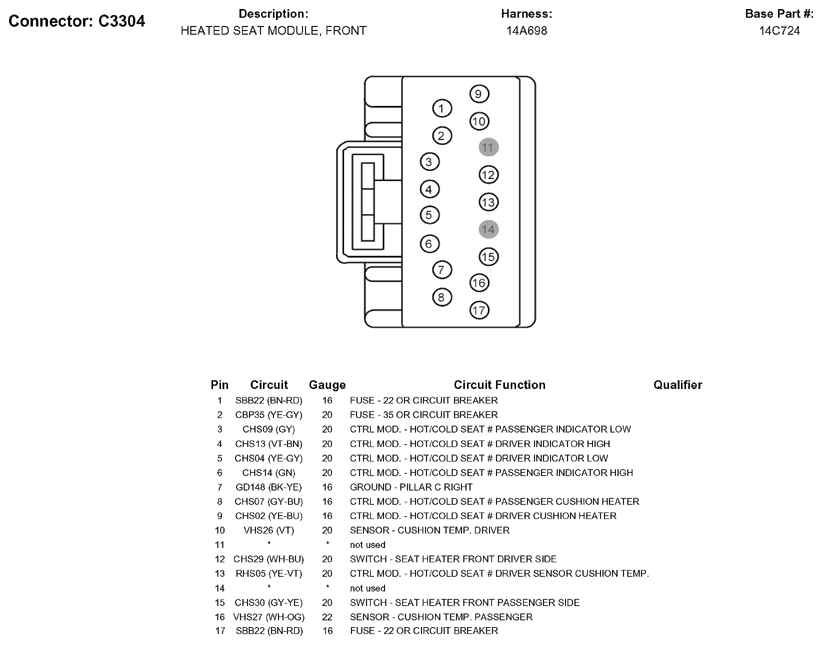

Fig 1: Front Heated Seat Module Connector End View (C3304)
G05790184Courtesy of FORD MOTOR CO.
