Fuel Pump Module Connector - C3127
Fuel Pump Module Connector - C3127

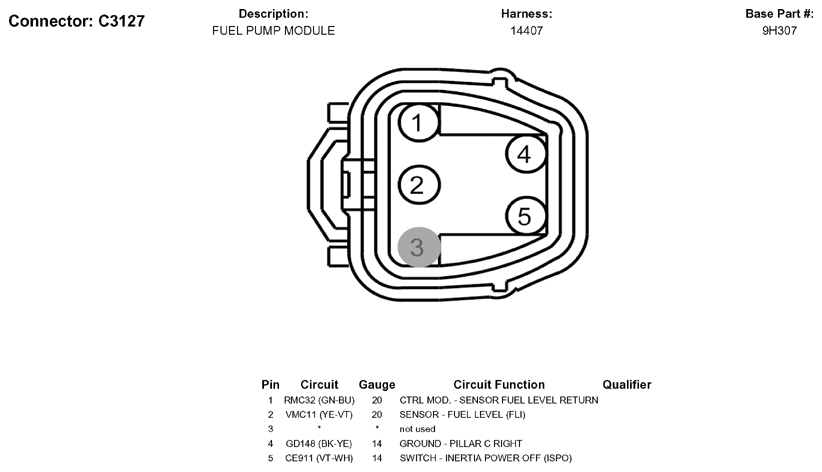

Fig 1: Fuel Pump Module Connector End View (C3127)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
