Headlamp Switch Connector - C205
Headlamp Switch Connector - C205

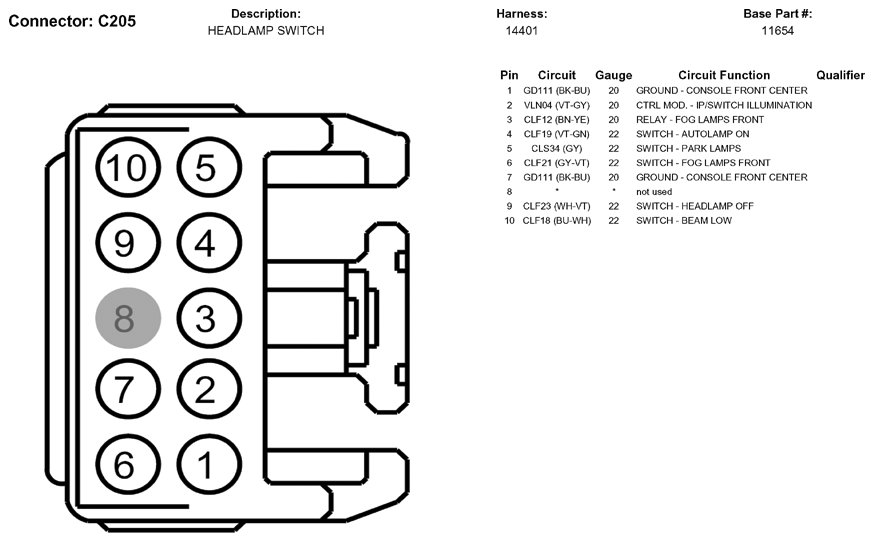

Fig 1: Headlamp Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
