Home › Mercury › 2009 › Sable Base, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Instrument Panel Power Point Connector - C2033

Instrument Panel Power Point Connector - C2033

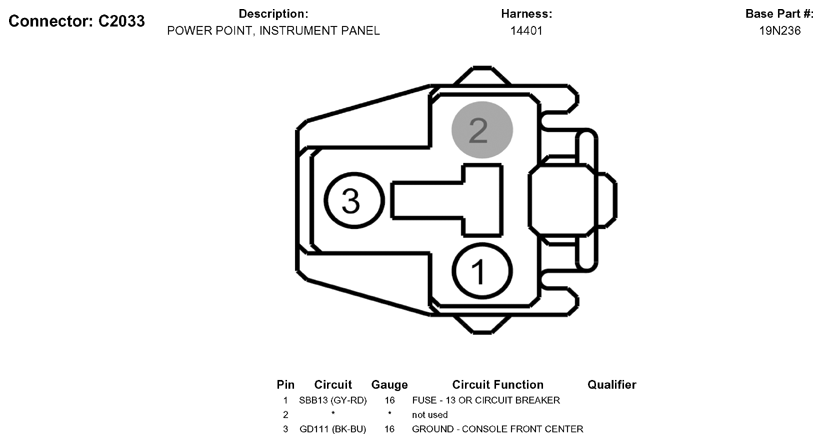

Fig 1: Instrument Panel Power Point Connector End View (C2033)
G05790114Courtesy of FORD MOTOR CO.
