Left Rear Window Adjust Switch Connector - C701
Left Rear Window Adjust Switch Connector - C701

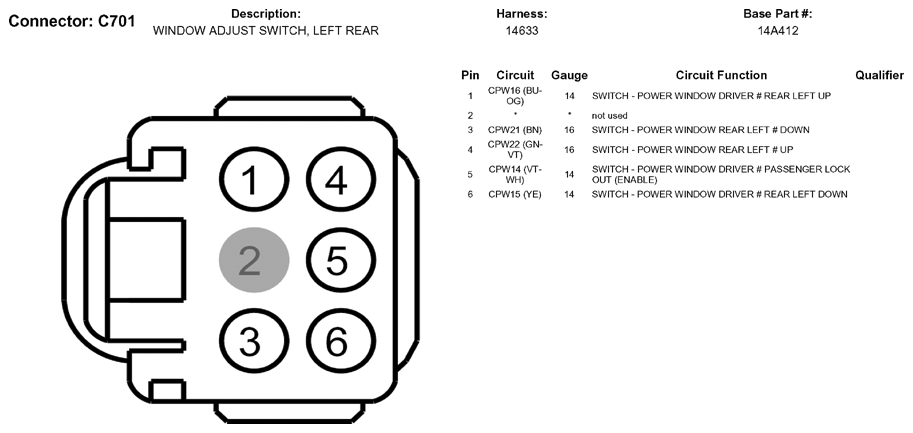

Fig 1: Left Rear Window Adjust Switch Connector End View (C701)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
