Master Window Adjust Switch Connector
›
Master Window Adjust Switch Connector End View - C504A
Master Window Adjust Switch Connector End View - C504A

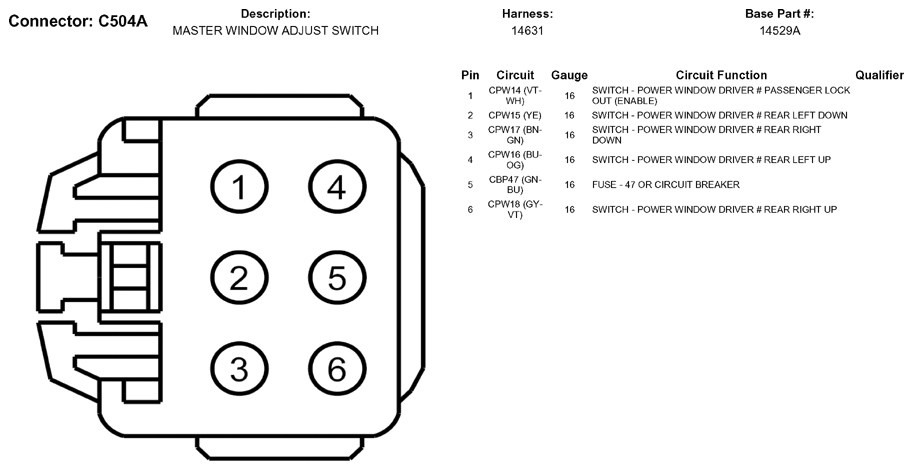

Fig 1: Master Window Adjust Switch Connector End View (C504A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
