Master Window Adjust Switch Connector End View - C504B
Master Window Adjust Switch Connector End View - C504B

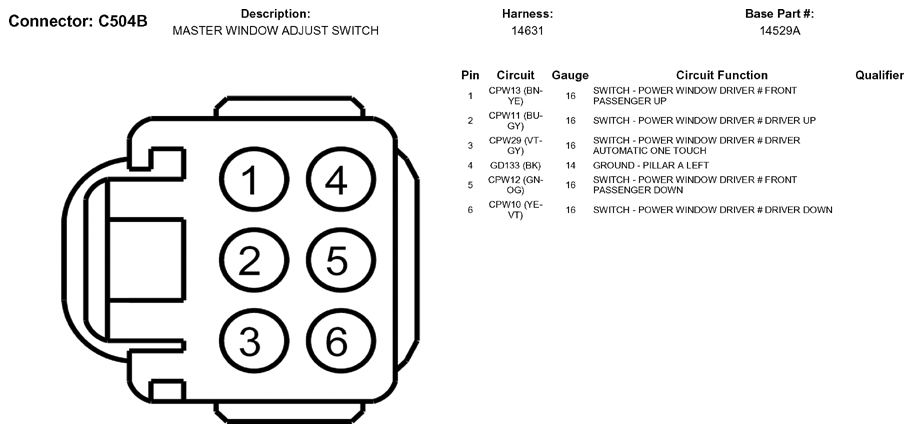

Fig 1: Master Window Adjust Switch Connector End View (C504B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
