Passenger Safety Canopy Module Connector End View - C9019

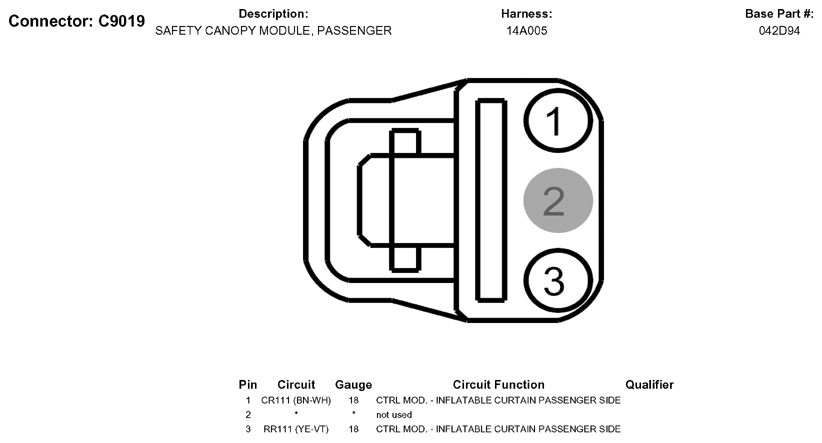

Fig 1: Passenger Safety Canopy Module Connector End View (C9019)
G05790215Courtesy of FORD MOTOR CO.
