Passenger Side Air Bag Module Connector - C3227

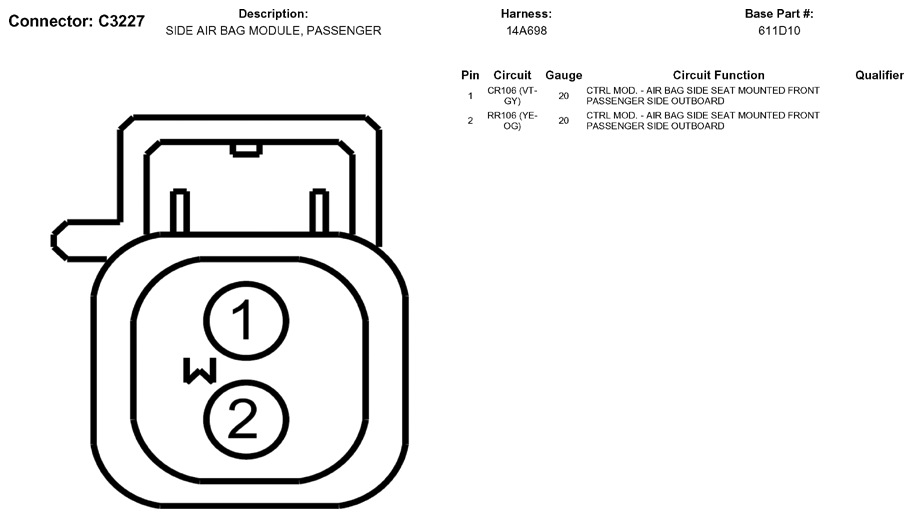

Fig 1: Passenger Side Air Bag Module Connector End View (C3227)
G05790170Courtesy of FORD MOTOR CO.
