Power Steering Control Module Connector - C2368

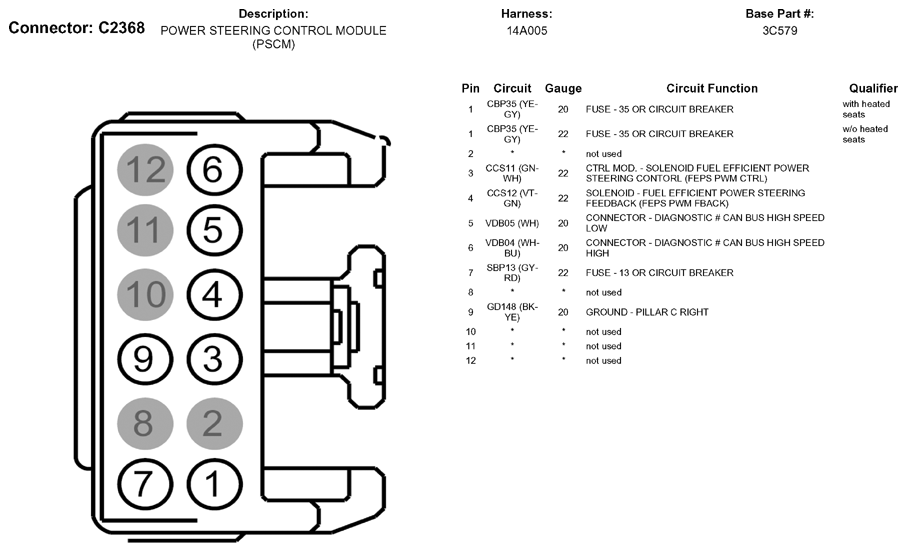

Fig 1: Power Steering Control Module Connector End View (C2368)
G05790137Courtesy of FORD MOTOR CO.
