Home › Mercury › 2009 › Sable Base, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Rear Console Power Point Connector - C3323

Rear Console Power Point Connector - C3323

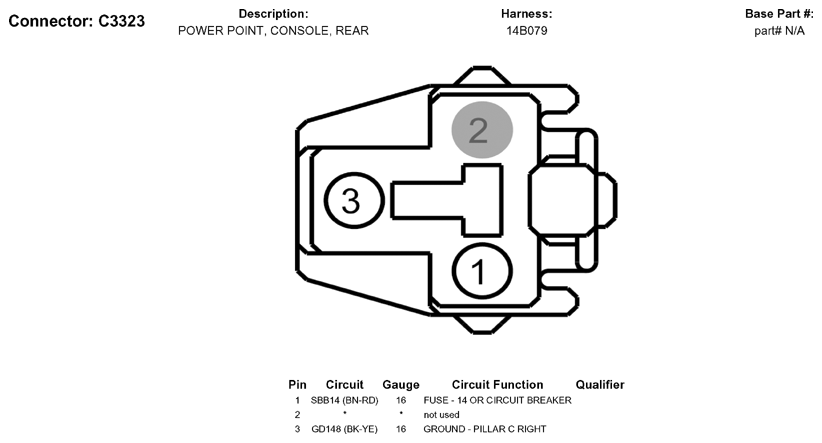

Fig 1: Rear Console Power Point Connector End View (C3323)
G05790186Courtesy of FORD MOTOR CO.
