Rear Heated Seat Module Connector - C3162

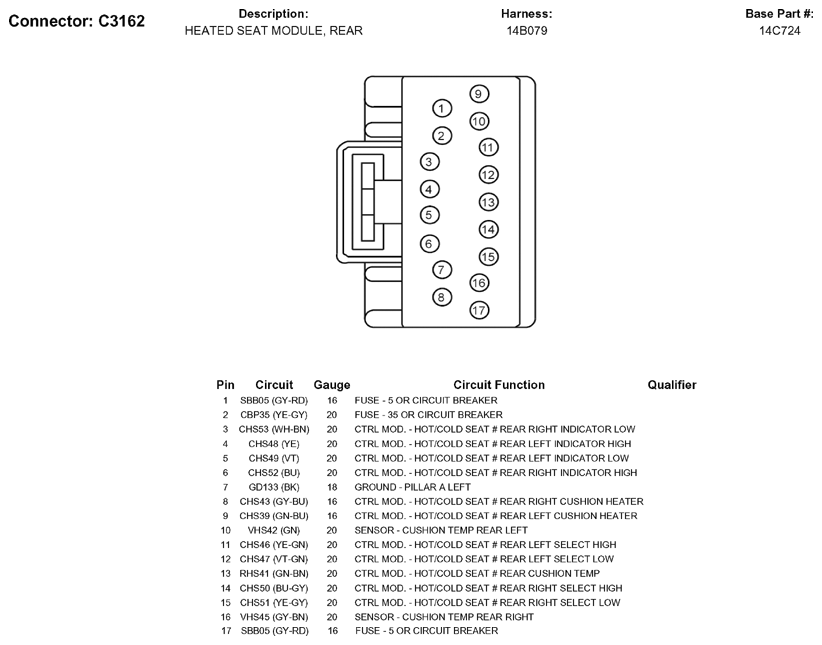

Fig 1: Rear Heated Seat Module Connector End View (C3162)
G05790158Courtesy of FORD MOTOR CO.
