Rear Window Defrost Grid Connector End View - C3241

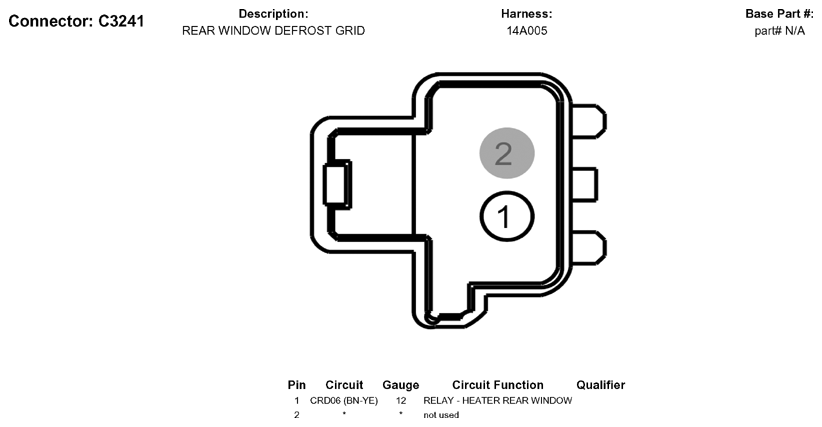

Fig 1: Rear Window Defrost Grid Connector End View (C3241)
G05790173Courtesy of FORD MOTOR CO.
