Right Front Impact Sensor Connector - C1466

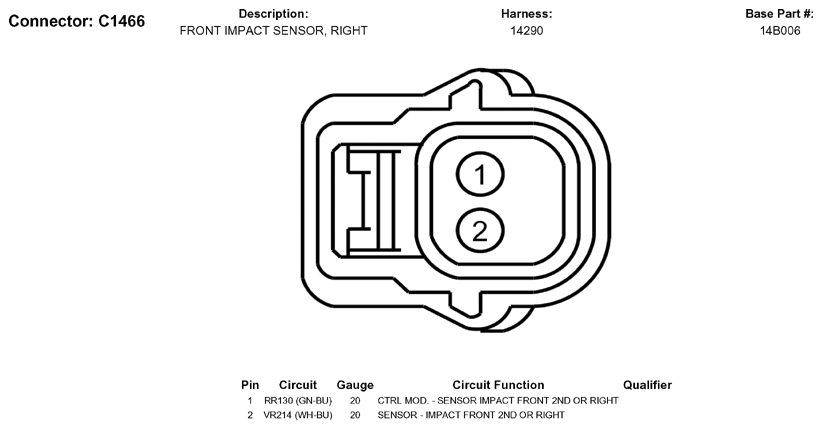

Fig 1: Right Front Impact Sensor Connector End View (C1466)
G05790109Courtesy of FORD MOTOR CO.
