Right Front Wheel Speed Sensor Connector - C160
Right Front Wheel Speed Sensor Connector - C160

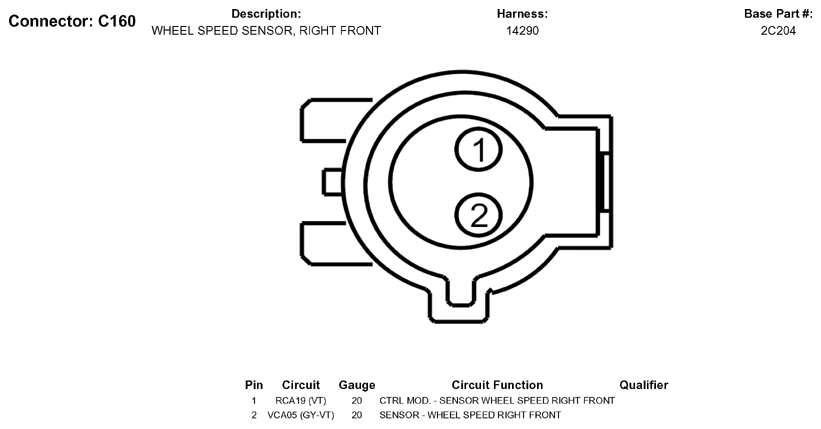

Fig 1: Right Front Wheel Speed Sensor Connector End View (C160)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
