Right Second Row Seat Control Switch Connector - C3344
Right Second Row Seat Control Switch Connector - C3344

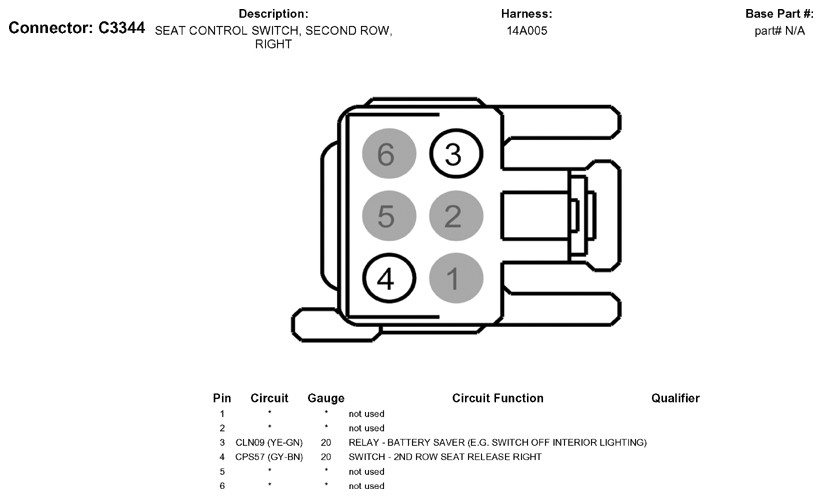

Fig 1: Right Second Row Seat Control Switch Connector End View (C3344)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
