Smart Junction Box Connector End View - C2280A
Smart Junction Box Connector End View - C2280A

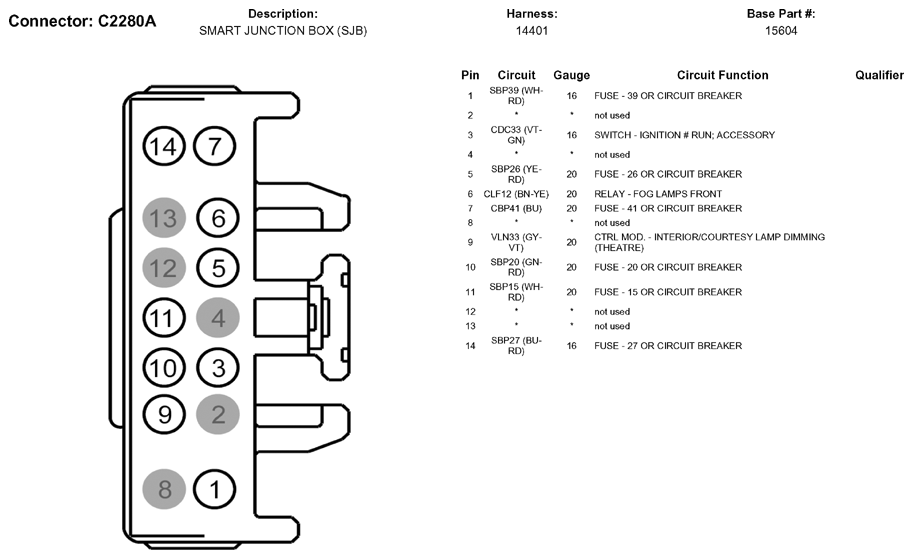

Fig 1: Smart Junction Box Connector End View (C2280A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
