Smart Junction Box Connector
›
Smart Junction Box Connector End View - C2280D
Smart Junction Box Connector End View - C2280D

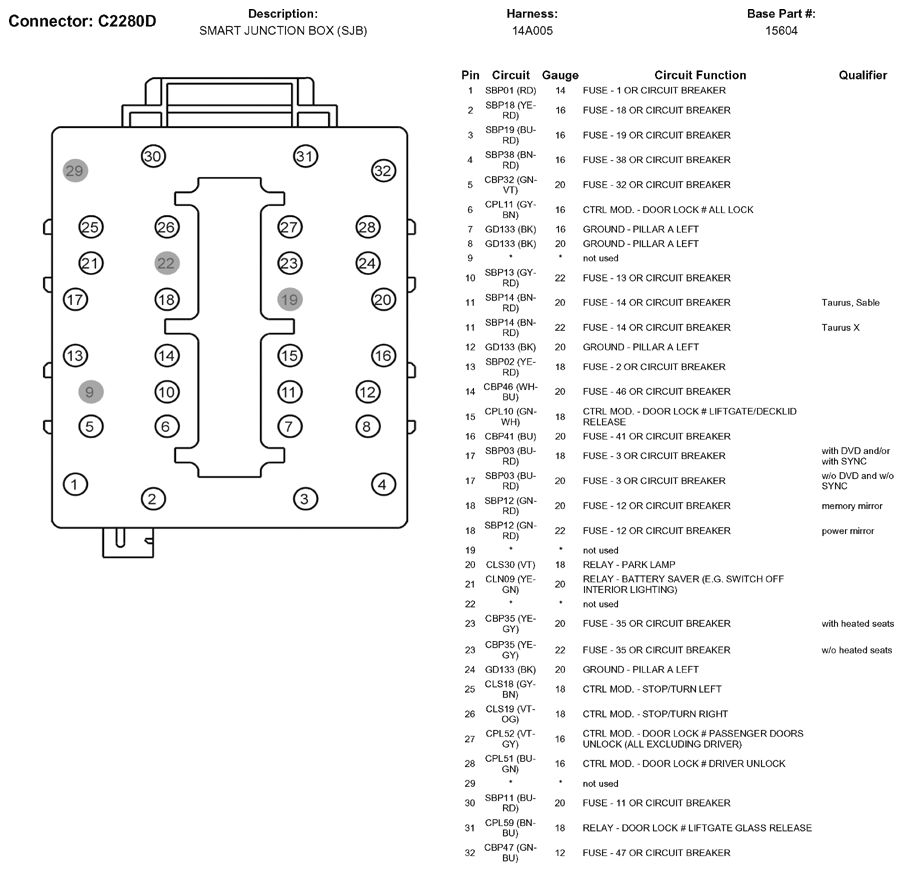

Fig 1: Smart Junction Box Connector End View (C2280D)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
