FixVault
Home
›
Mercury
›
2009
›
Sable Base, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector Views
›
Speed Control Deactivation Switch Connector - C277
Speed Control Deactivation Switch Connector - C277

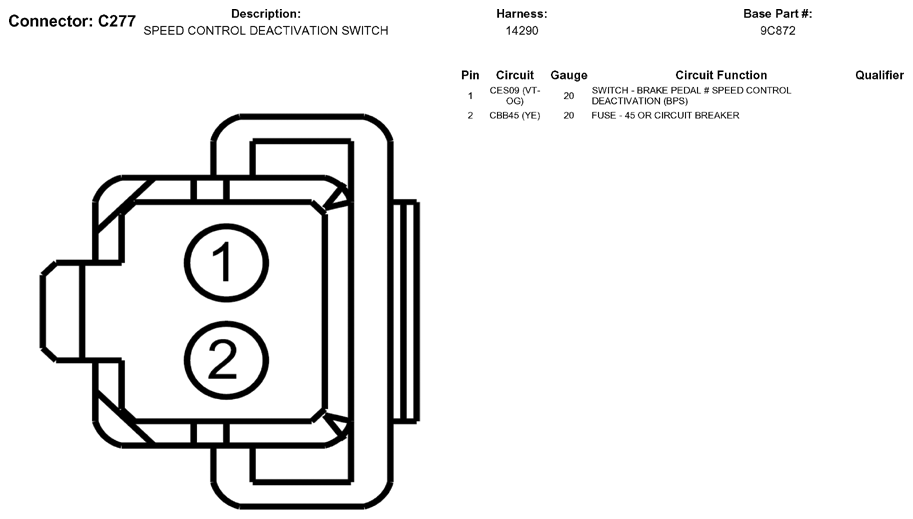

Fig 1: Speed Control Deactivation Switch Connector End View (C277)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
