Driver Safety Canopy Module Connector
›
Driver Safety Canopy Module Connector End View - C9031
Driver Safety Canopy Module Connector End View - C9031

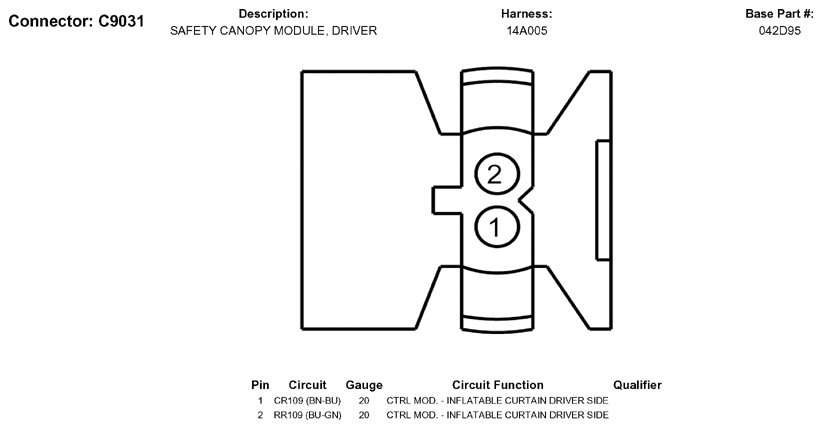

Fig 1: Driver Safety Canopy Module Connector End View (C9031)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
