Driver Seat Module Connector End View - C341D

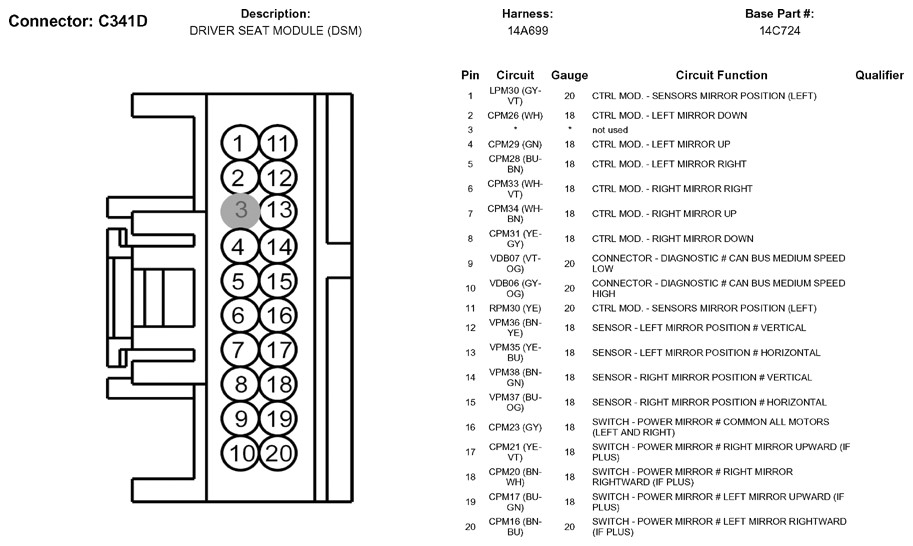

Fig 1: Driver Seat Module Connector End View (C341D)
G05789998Courtesy of FORD MOTOR CO.
