Variable Cam Timing System Monitor

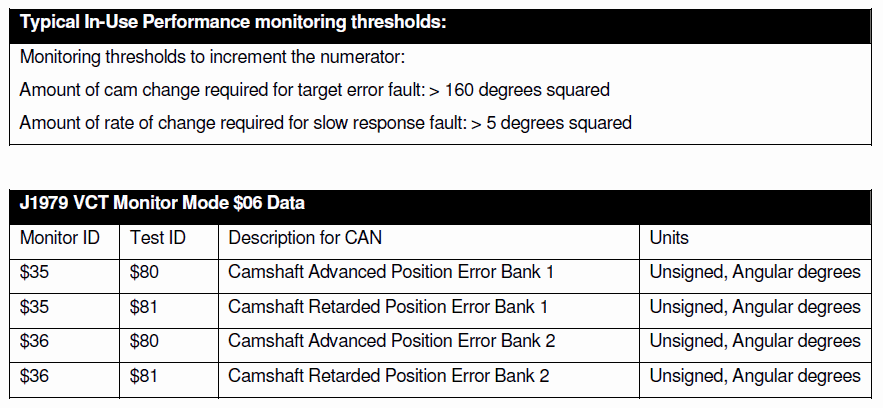

Fig 1: Mode $06 Data For VCT System Monitor
G00502236Courtesy of FORD MOTOR CO.
