Side Impact Sensor - First Row, B-Pillar: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH shown, LH similar.

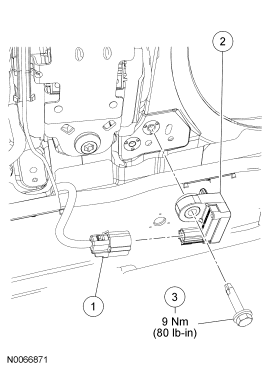

Fig 1: Side Impact Sensor - First Row, B-Pillar With Torque Specification
GF0041988Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Side impact sensor connector (part of 14A005)
2 14B345 Side impact sensor
3 W713759 Side impact sensor bolt
