Power Liftgate Motor: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

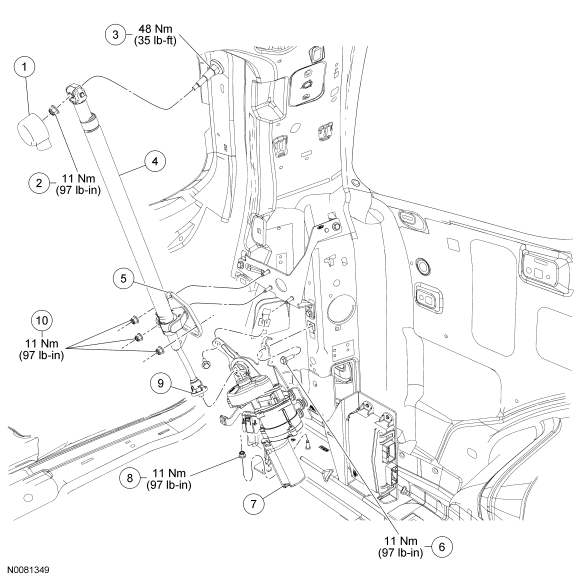

| Item | Part Number | Description |
|---|---|---|
| 1 | 410B00 | Power liftgate rod-to-liftgate nut cover |
| 2 | W520412 | Power liftgate rod-to-liftgate nut |
| 3 | 404E48 | Power liftgate rod mounting stud |
| 4 | 404B45 | Power liftgate rod |
| 5 | - | Power liftgate rod bracket |
| 6 | W505425 | Power liftgate motor retaining bolt (2 required) |
| 7 | 404C85 | Power liftgate motor |
| 8 | W520111 | Power liftgate motor retaining nut |
| 9 | - | Power liftgate rod-to-motor retaining clip |
| 10 | - | Power liftgate rod mounting bracket nuts |
