Power Liftgate Rod: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
Threadlock 262
TA-26
WSK-M2G351-A6

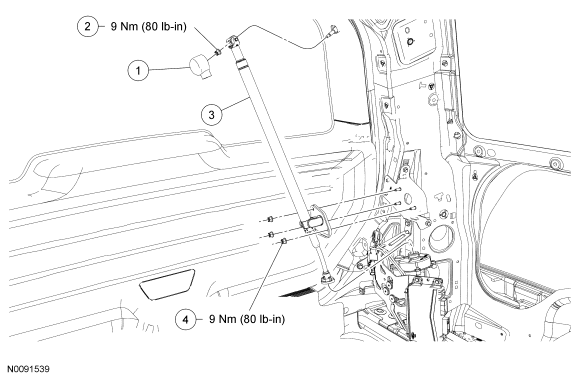

Fig 1: Power Liftgate Rod With Torque Specifications
GF0045343Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7821978 Power liftgate rod upper nut cover
2 W520201 Power liftgate rod upper nut
3 74431A78 Power liftgate rod assembly
4 W520201 Power liftgate rod lower nut (3 required)
