Roof Opening Panel - Exploded View
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The roof opening panel motor must be initialized when repairs are carried out on any part of the roof opening panel system, including: whenever the roof opening panel motor has been removed from the roof opening panel system, the roof opening panel glass has been removed from the roof opening panel system, the roof opening panel assembly has been removed from the vehicle, a new roof opening panel motor has been installed, a new roof opening panel glass has been installed or a new roof opening panel assembly has been installed. For additional information, refer to Roof Opening Panel Motor Initialization .
NOTE:
Roof opening panel with rear entertainment system shown, roof opening panel without rear entertainment system similar.

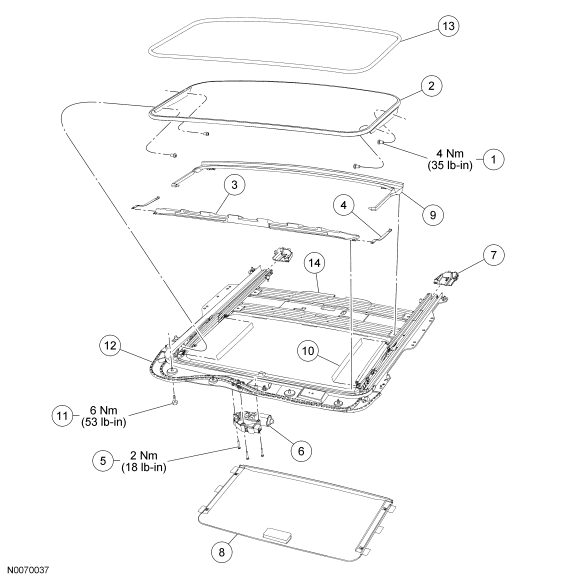

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Roof opening panel glass screw (4 required) |
| 2 | 500A18 | Roof opening panel glass |
| 3 | 500A26 | Air deflector assembly |
| 4 | - | Air deflector assembly spring |
| 5 | - | Roof opening panel motor screw (3 required) |
| 6 | 58689 | Roof opening panel motor |
| 7 | - | Roof opening panel end cap |
| 8 | 519A02 | Roof opening panel shield |
| 9 | 54022 | Trough assembly |
| 10 | 500A66 | Roof opening panel side shield (2 required) |
| 11 | W702928-S303 | Roof opening panel frame bolt (12 required) |
| 12 | 502B98 | Roof opening panel assembly |
| 13 | 5451884 | Weatherstrip |
| 14 | - | Family entertainment system bracket |
- For additional information, refer to the procedures in this article.
