Steering Column Multifunction Switch: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

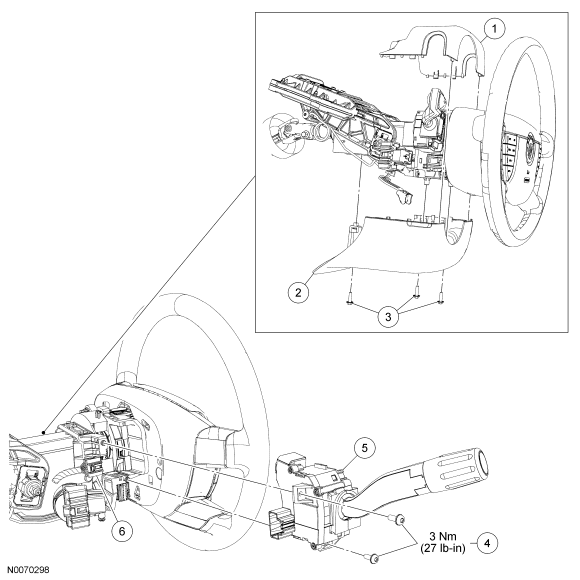

Fig 1: Steering Column Multifunction Switch Components With Torque Specification
GF0045955Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3530 Upper steering column shroud
2 3530 Lower steering column shroud
3 W707658 Steering column shroud screws (3 required)
4 W504694 Multifunction switch screws (2 required)
5 13K359 Multifunction switch
6 - Multifunction switch electrical connector (part of 14401)
