Headlamp Assembly: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

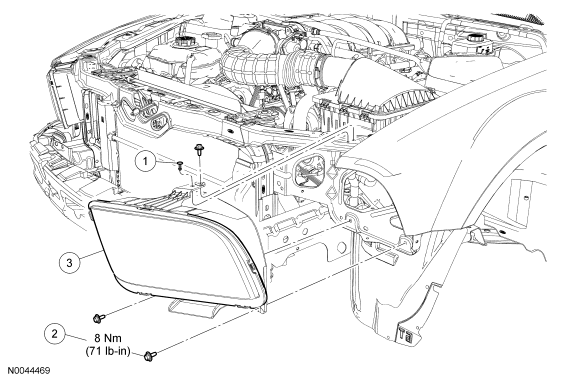

Fig 1: Exploded View Of Headlamp Assembly With Torque Specification
GF0016149Courtesy of FORD MOTOR CO.
Item Part Number Description
1 58403D24 Push pin
2 W712277 Headlamp assembly bolts (3 required)
3 13008/13035 Headlamp assembly (RH/LH)
