Passenger Air Bag Module: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

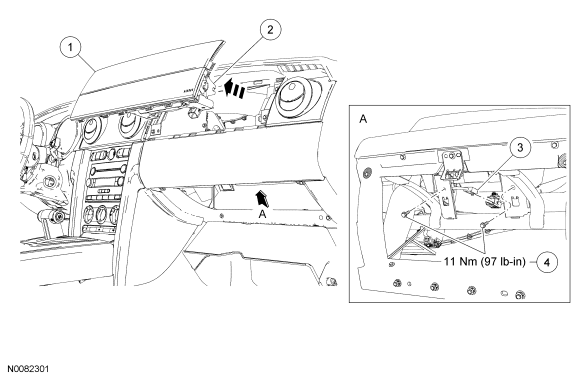

Fig 1: Exploded View Of Passenger Air Bag Module With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	04338	Passenger air bag cover
2	044A74	Passenger air bag module assembly
3	-	Passenger air bag module electrical connector (part of 14401)
4	W505252	Passenger air bag module bolts (2 required)
