Restraints Control Module (RCM): Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

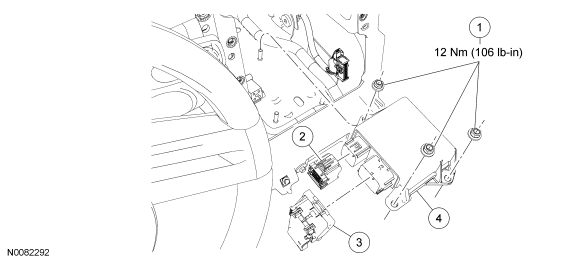

Fig 1: Exploded View Of Restraints Control Module (RCM) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520111	Restraints Control Module (RCM) nuts (3 required)
2	-	RCM small connector (part of 14401)
3	-	RCM large connector (part of 14A005)
4	14B321	RCM
