Side Impact Sensor: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH similar.

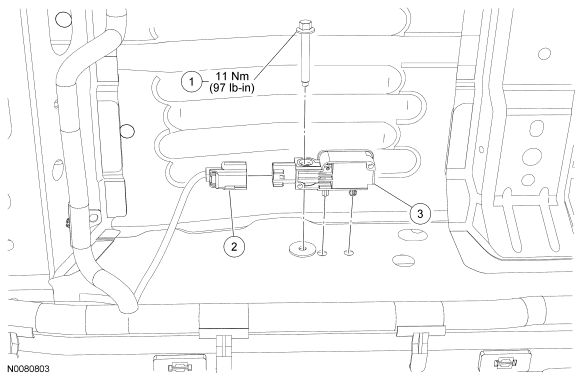

Fig 1: Exploded View Of Side Impact Sensor With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Side impact sensor bolt (part of 14B345)
2	-	Side impact sensor electrical connector (part of 14A005)
3	14B345	Side impact sensor
