Spring - Coil: Notes
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

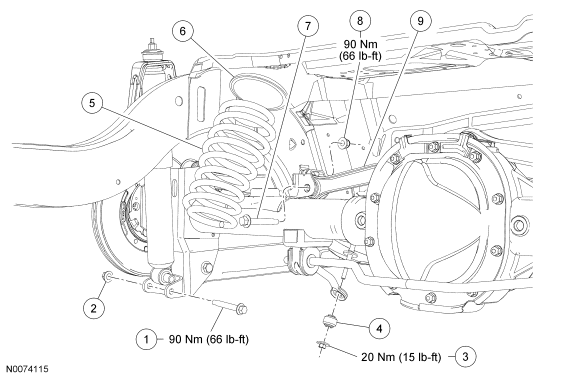

| Item | Part Number | Description |
|---|---|---|
| 1 | W506551 | Lower shock bolt |
| 2 | W520214 | Lower shock nut |
| 3 | N621941 | Stabilizer bar link nut |
| 4 | 5493 | Stabilizer bar link bushing |
| 5 | 5560 | Rear spring |
| 6 | 5536 | Rear spring insulator |
| 7 | W506545 | Lateral arm bolt (2 required) |
| 8 | W520214 | Lateral arm nut (2 required) |
| 9 | 4264 | Lateral arm (2 required) |
